Multiselect for Filters

Filters in the WooCommerce Product Table

The WooCommerce Product Table plugin fully supports product attributes, tags, and categories. You can display them as a separate column in the product table.
But most importantly, Product Table has built-in filters for categories, tags, attributes, custom taxonomy and prices, which can be added as a drop-down menu above the table and use to Multiselect  for Filters  option.
You can enable these options in the product table and let customers filter the products they are looking for.

The advantage of the WooCommerce Product Table in the existence of the “Multiselect  for Filters  option” – with it, you can filter by several parameters at the same time.

Multiselect for Filters

How to Use Filters in The WooCommerce Product Table?

Settings for Available Filters   in Product Tables:

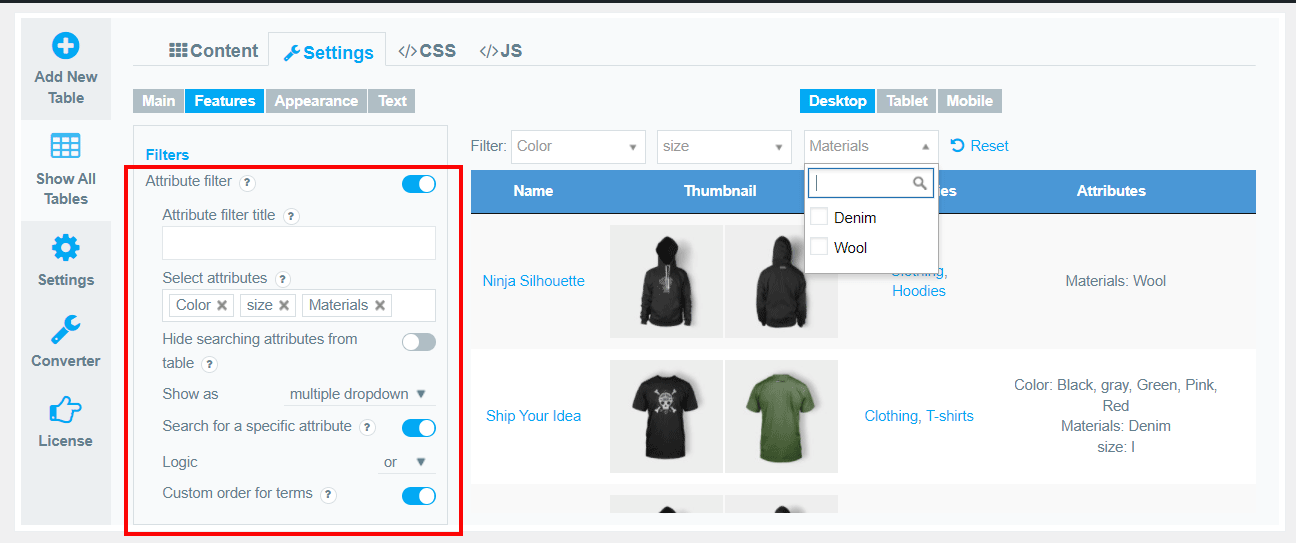

Attribute Filter

Attribute filter title. Set it if you want to replace titles for all filtered attributes.

Select attributes. Select attributes to filtering.(For ex. Color,Materials,Size,etc)

Hide searching attributes from table .Hide attribute column(s) and keep the filter to display. You don’t need to add attributes as a column to make filters available. Selected filters will be displayed. If you will add some attribute as a column manually, it will not be hidden even if “Hide searching attributes from a table” is enabled.

Show as: dropdown of multiselect dropdown:

  • If you have chosen “Dropdown ” you can enable Search for a specific attribute.Finds all products where the attribute exactly matches the search criteria.
  • If you have chosen   “Multiselect Dropdown”you can enable Logic.Select the filtering conditions “Or” or “And”

If you want to learn more about attributes, see this article.

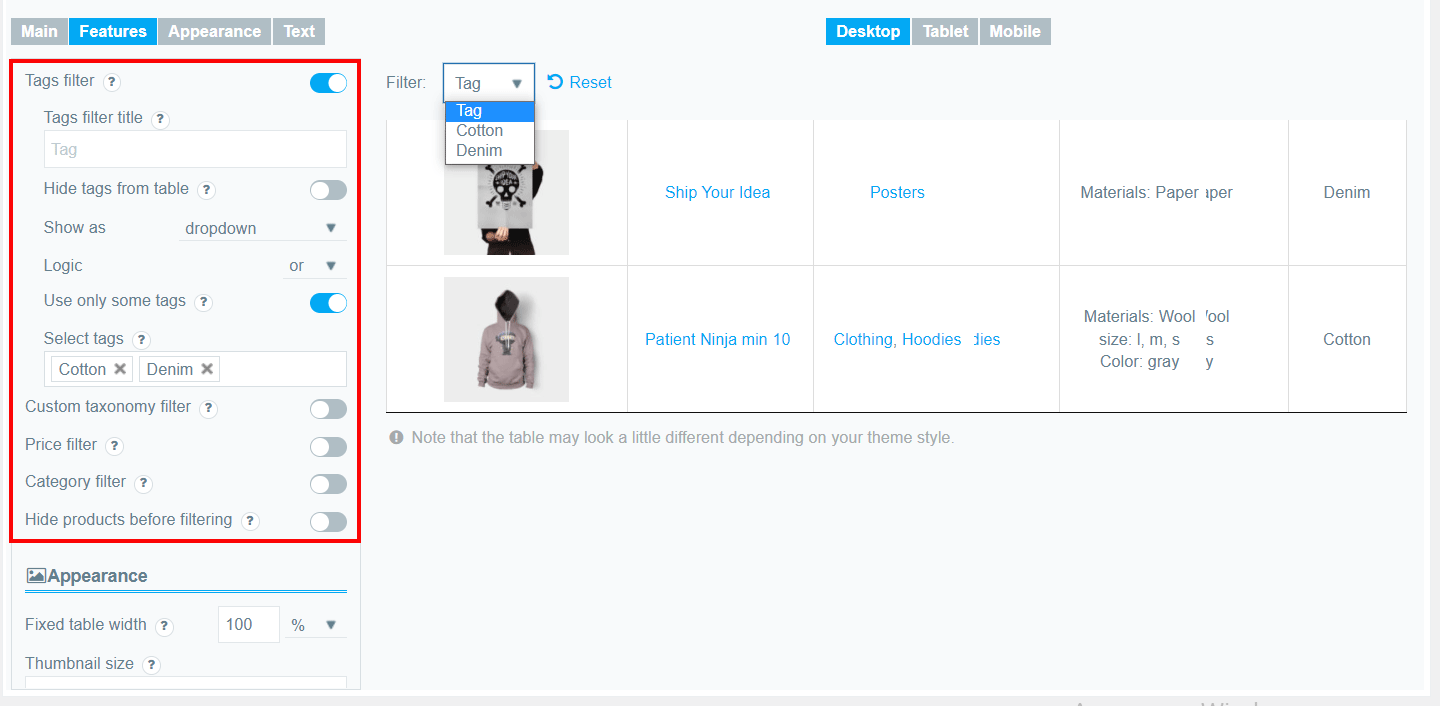

Multiselect for Filters Tags Filter

Tags Filter Title.Display as a default option of dropdown tags filter.

Hide Searching Tags from Table .Hide tags column and keep the filter to display. You don’t need to add Tags as a column to make filter available. If you will add Tags as a column manually, it will not be hidden even if “Hide tags from table” is enabled.

Show as: dropdown of multiselect dropdown (If you have chosen   “Multiselect Dropdown”you can enable Logic.Select the filtering conditions “Or” or “And”)

Use only some tags .Show only selected tags in the filter. If you have selected this option you can Select Tags to filtering(For ex. Cotton,Denim,etc).

Multiselect for Filters



Custom Taxonomy Filter

Custom taxonomies filter title. Set it if you want to replace titles for all custom taxonomies.

Select taxonomies . Select custom taxonomies to filtering

Hide searching attributes from table.Hide custom taxonomies column(s) and keep the filter to display. You don’t need to add custom taxonomies as a column to make filters available. Selected filters will be displayed. If you will add some custom taxonomies as a column manually, it will not be hidden even if “Hide searching custom taxonomies from a table” is enabled.

Show as: dropdown of multiselect dropdown (If you have chosen   “Multiselect Dropdown”you can enable Logic.Select the filtering conditions “Or” or “And”)

In order to add the Custom taxonomy filter,  move to the Settings -> Features -> and enable Taxonomy filter. Select the terms and Save the settings.

Multiselect for Filters

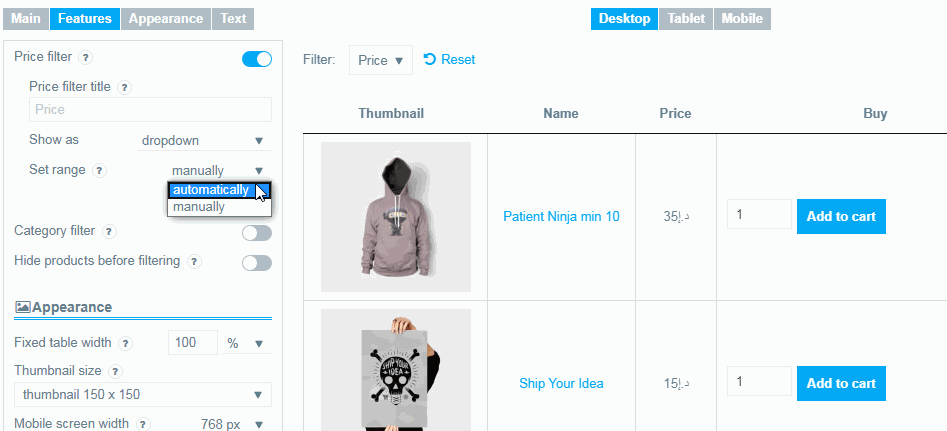

Price Filter

The Price Filter only works with the included Price Column.

Price filter title.Display as a title for a dropdown filter price
Show as:You can choose Dropdown of Multiselect Dropdown
Set range . You can choose Automatically or Manually :

  • If you selected “Automatically” then you can configure the following:

Step .Here you may set the value of prise increase step. The default value is set to 20. All the steps are equal. When setting the step, please note that the number of elements in the list should not exceed 100, otherwise the step setting will be reset and automatically calculated.
-(Min price:___Max price:___)

  • If you selected “Manually” then you can configure the following:

Setup range.And just select your ranges

Multiselect for Filters

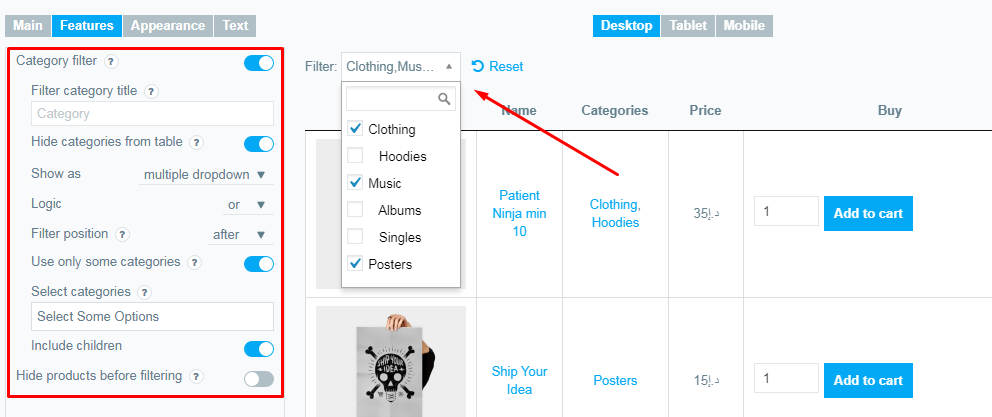

Category Filter

Filter category title .Display as a default option of dropdown filter category.
Hide categories from table .Hide categories column and keep the filter to display. You don’t need to add Categories as a column to make filter available. If you will add Categories as a column manually, it will not be hidden even if “Hide categories from table” is enabled.
Show as: dropdown of multiselect dropdown (If you have chosen   “Multiselect Dropdown”you can enable Logic.Select the filtering conditions “Or” or “And”)
Filter position. You can select the filter position “Before” or “After”
Use only some categories .Show only selected categories in the filter. If you have selected this option you can Select Categories to filtering(For ex. Clothing, Hoodies,Poster,etc).
Include children.Shows categories designed for children.
Hide products before filtering.Hide all the products in the table until a user defines a search parameter or filter.

Multiselect for Filters

Try Multiselect for filters  in the Product Table

With the WooCommerce Product Table plugin, you can use this option which allows you to filter by Several Parameters at the Same time.
Set the parameters you are interested in and find exactly what you need!

Try option “Multiselect for filters” in this example Product Table:

ThumbnailNameSummaryStock statusPricecolAttrHidecolAttrHidecolAttrHidecolAttrHide
WooBeWoo hoodieThis is the product short description.In stock$18Gray, GreenM, S, XXL, , gray, green, grey, HOODIE, SALE
Black hoodieThis is the product short description.In stock$15 $12BlackL, S, , HOODIE
Gray hoodieThis is the product short description.In stock$15 $12GrayL, M, S, XL, , grey, PRINT, SALE, T-SHIRT
Blush HoodieThis is the product short description.In stock$20BlushM, S, XL, XS, blush, HOODIE, pink, PRINT
Red T-ShirtThis is the product short description.Out of stock$10 $8RedL, M, XL, , , PRINT, red, SALE, T-SHIRT
Blue HoodieThis is the product short description.In stock$25 $20BlueM, XL, XS, ,
Gray HoodieThis is the product short description.In stock$30 $25GrayM, S, XL, XS, XXL, XXXL, gray, HOODIE, PRINT
Black HoodieThis is the product short description.In stock$20BlackM, S, XLblack, HOODIE, PRINT
Red HoodieThis is the product short description.In stock$20RedL, M, XL, XS, XXLHOODIE, PRINT, red
Filter: Reset
#wtbp-table-34_350516_wrapper table {border-collapse: collapse;} #wtbp-table-34_350516 th, #wtbp-table-34_350516 td, #wtbp-table-34_350516.wtbpVarAttributes {vertical-align: middle;} #wtbp-table-34_350516_wrapper th {text-align: center;} .wtbpModalContent {width: 80%;} .wtbpModalContent.wtbpModalContentForVariations {max-width: 600px;}

Still have some questions about Multiselect for Filters? Contact us and ask about it.
